Parameter:

Operating Voltage DC3.3-12V

Min orifice: DN 1.0mm

Flow range 0.12-0.8L/min

Voltage DC5V

Connector Inner Φ5MM tube

Insulation resistance >10MΩ

Output pulse high voltage >DC5V( Input Voltage DC5V)

Output pulse low voltage <DC0.5V (Input Voltage DC5V

Working medium/temperature:Water ≤60℃

Pressure resistant :0.2 MPa, no leak, and parts not allow any crack, relaxation, expansion and deformation anomaly

Flowcharacterostic 0.109g/pulse（each pulse≈0.109g water）

accuracy ±5%

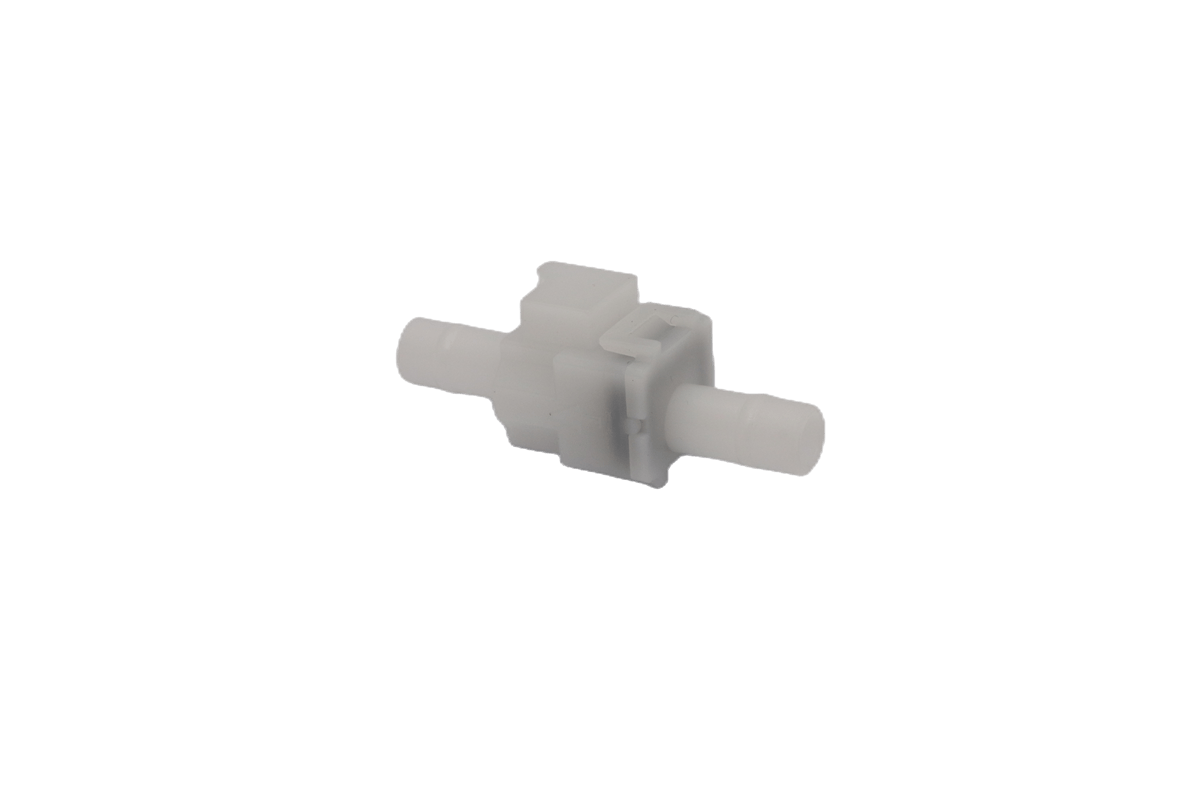

type :The micro hall flow meter
