JIAYIN high accurancy ,high temperature,corrosion resistance flow meter JYLCG-11A01 for commercial coffee machine

JIAYIN high accurancy high temperature corrosion resistance flow meter JYLCG-11A01 for commercial coffee machine

high accurancy ,high temperature,corrosion resistance flow meter
Inquiry Now Send E-mail
sales12@jiain.biz +86-137-36012061
Product Description

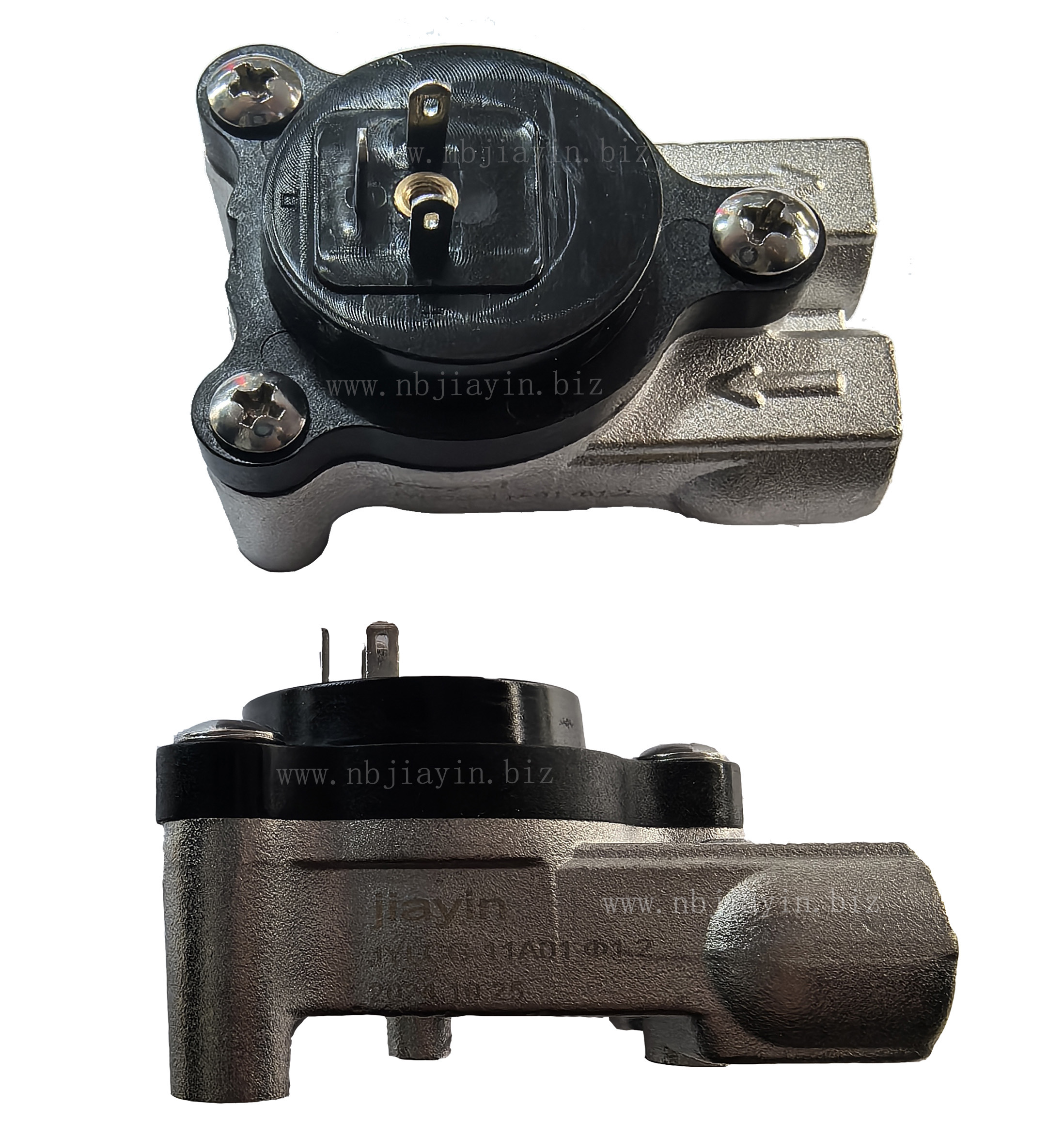

JIAYIN high accurancy high temperature corrosion resistance flow meter JYLCG-11A01 for commercial coffee machine

This flowmeter is a universal device ,The circumference can be determined according to the size of its nozzle. This product is used for testing,Measuring, regulating, or measuring to accurately volume of liquids.

Features: 1. High Precision ±2%  (Repeat Accuracy :±0.25%)   2.Corrosion Resistance

Technical Parameters

Flow range:400～1000ml/min

Flow :0.038-11.55L/min (depending on nozzle diameter)

Accuracy :±2%

Repeat accuracy: ±0.25%

Temperature range: +10℃～100℃

Installation method :horizontal installation

Connection: G1/4”

Medium :pure water


Electrical Parameter

Working voltage: +3.8 to +24V DC

Consumption: <8mA

Signal connection :open collector NPN

Signal voltage: 0VDC GND (saturation <0.7V)

Signal load :maximum 20mA

Leakage current： maximum 10μA

Connection ：3Pin-Amp2.9×0.8

Signal output ：square wave

Duty cycle ：~50%
