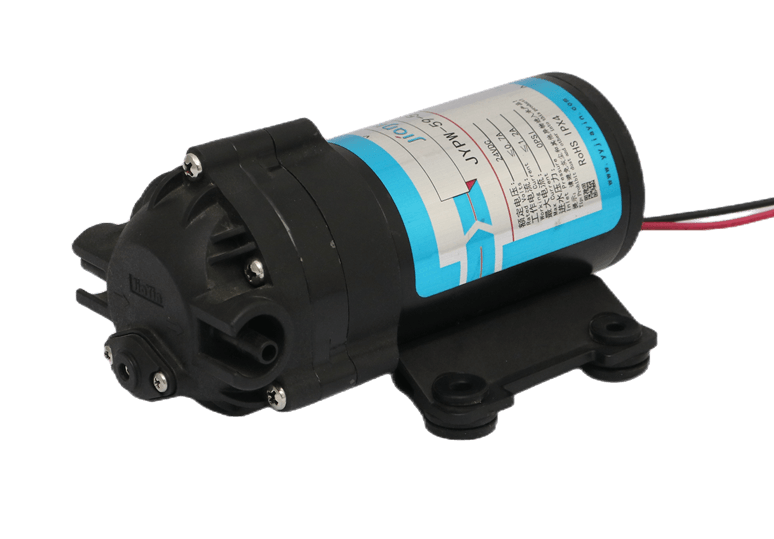

JIAYIN brand DC24V 75Gallon RO water purifier booster pump

JIAYIN brand DC24V 75Gallon RO water purifier booster pump
Application:RO water purifier, home water supply, Floor Cleaning Machines
Inquiry Now Send E-mail
sales12@jiain.biz +86-137-36012061
Product Description

JIAYIN brand DC24V 75Gallon RO water purifier booster pump

Rated voltage: DC 24V.
Working current: ≤1.0A.
Maximum current: ≤1.5A
Inlet pressure: 0.2MPa.
Working pressure: 0.5MPa
Working flow: 850mL
Sealing pressure: 1.0±0.1MPa.

Self-priming height: 2M

Bursting pressure ≥3.0MPa

Maximum current ：≤1.5A

Noise：≤48dB.

Surface temperature rise ：≤50K.

Block pressure：1.0±0.1MPa(Block the outlet under the rated voltage and rated water inlet pressure.)

Life：Under the rated state, start and stop 100,000 times or continuous work for 2000hours,  water leakage, stucks not allowed

Water hammer resistance:Under the pressure of 1.04MPa, the pump body can withstand 100,000 times of water hammer test without deformation and damage, and shall not appear seepage.Water leakage phenomenon.



Flow Curve
